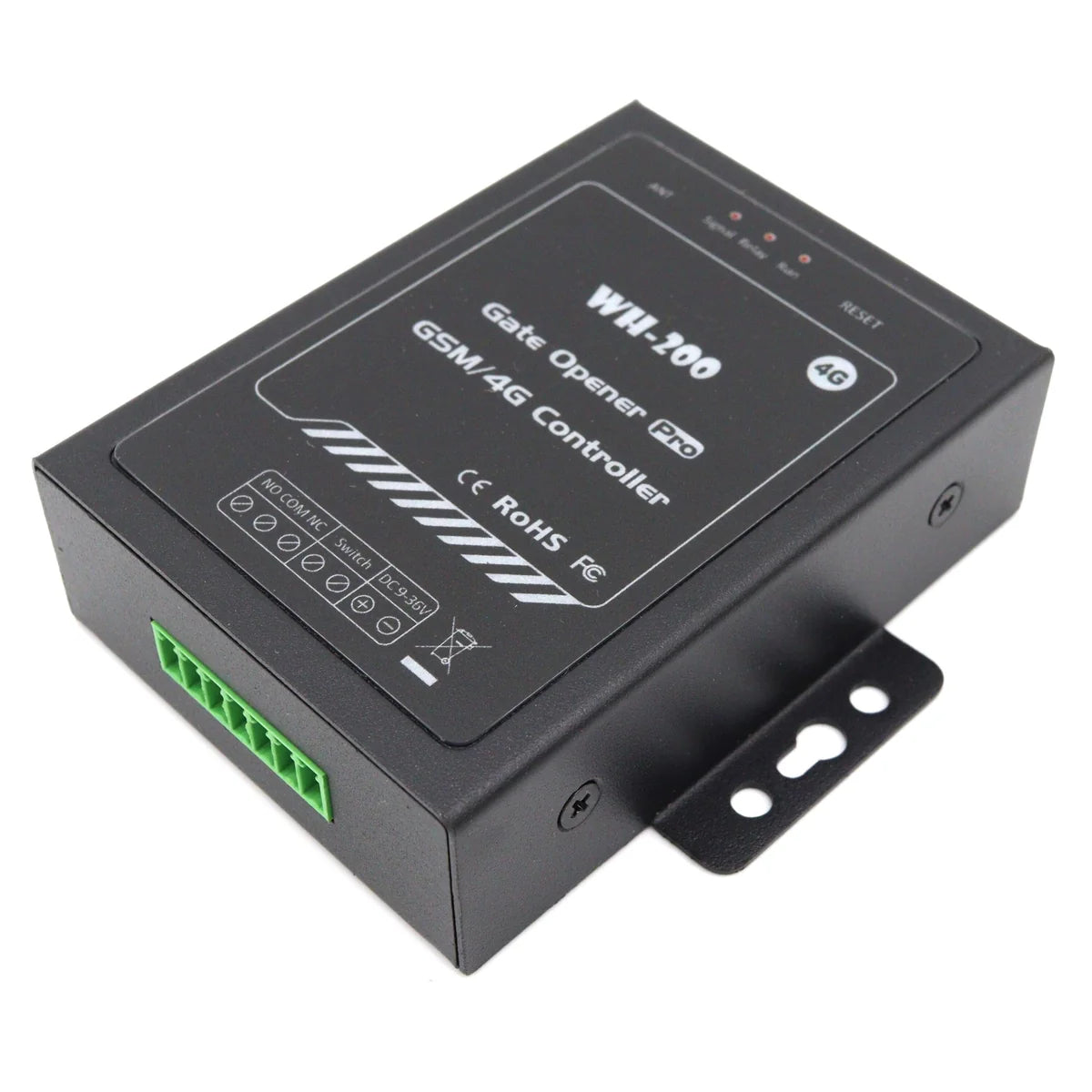

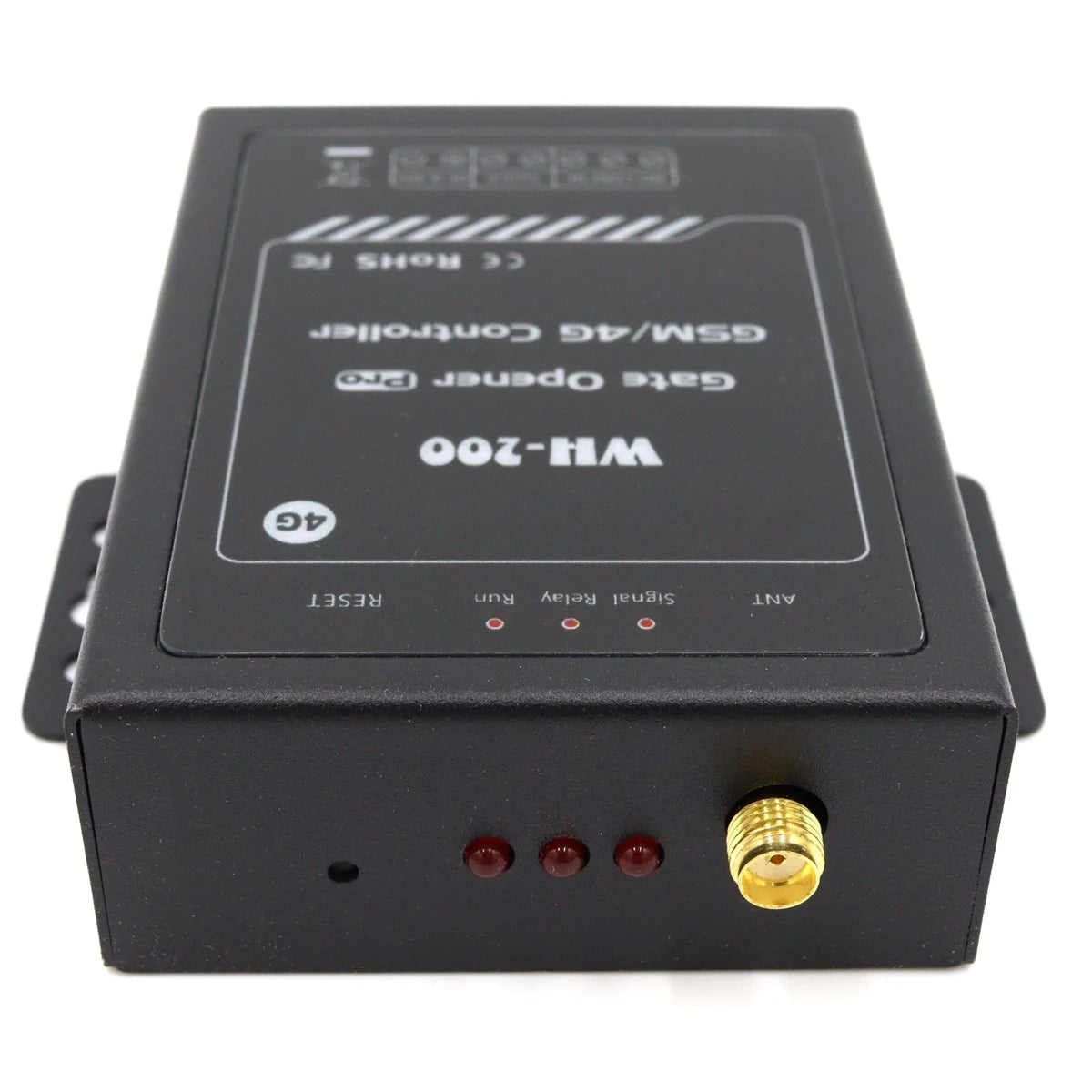

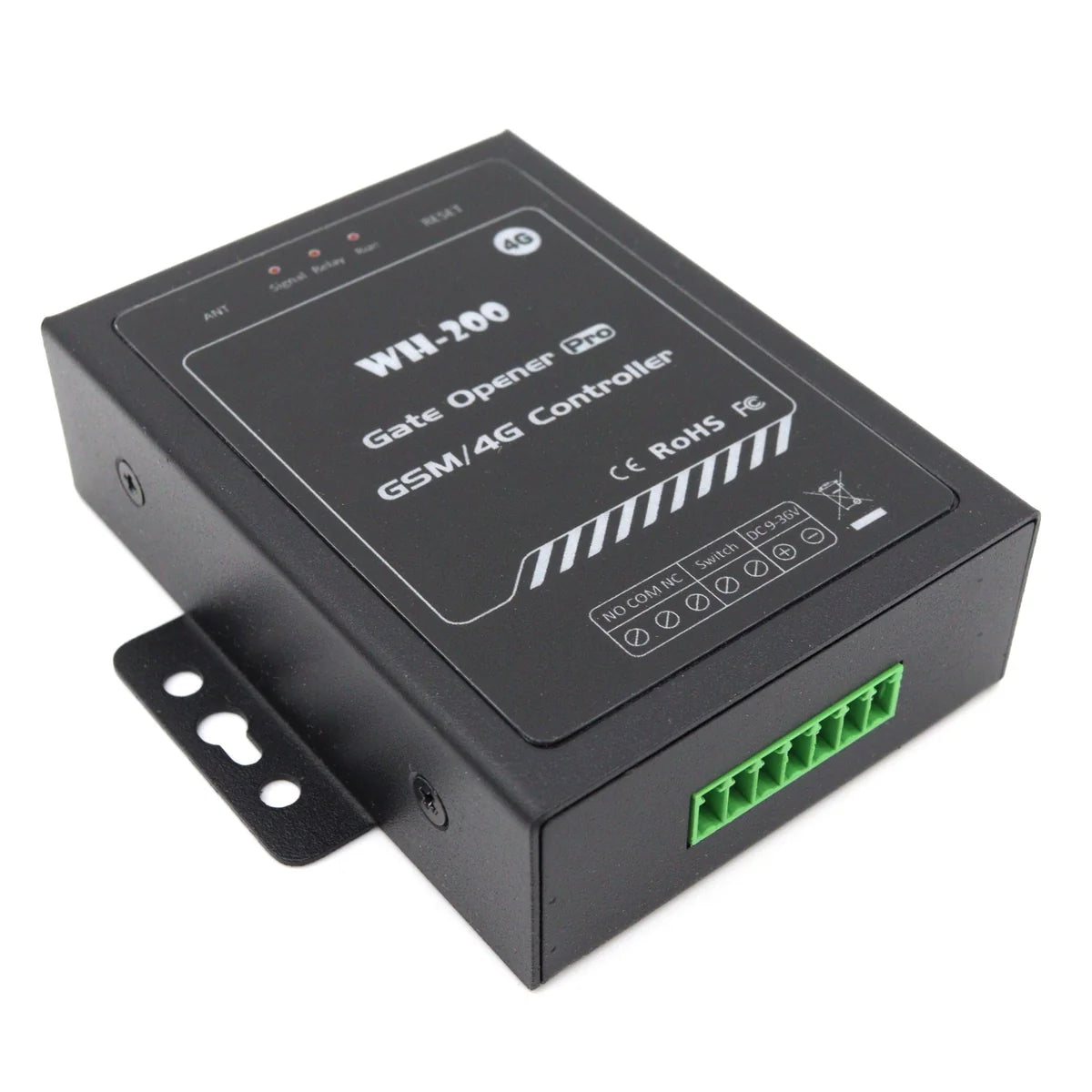

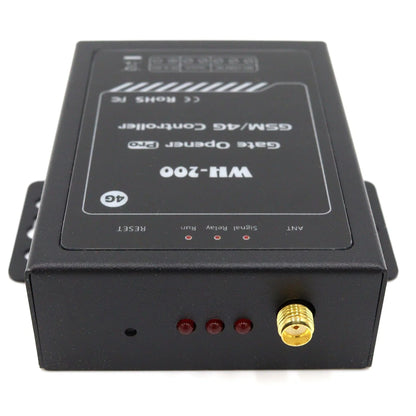

4G GSM WH-200 Receiver

A FREE phone call from your mobile phone or fixed telephone to the WH-200 can be used to operate your Jimmy Wheel.

We hard wire the WH-200 in your control box, you source a 4G Sim and follow the configuration instructions to set your receiver up for operation.

Compatibility:

• 4G Network Compatible
• Text To Operate: Optus, Telstra, Vodafone
• Call To Operate: Optus, Vodafone
• Please Note: Telstra SIMs are only able to text to operate and will not work with calls at this stage

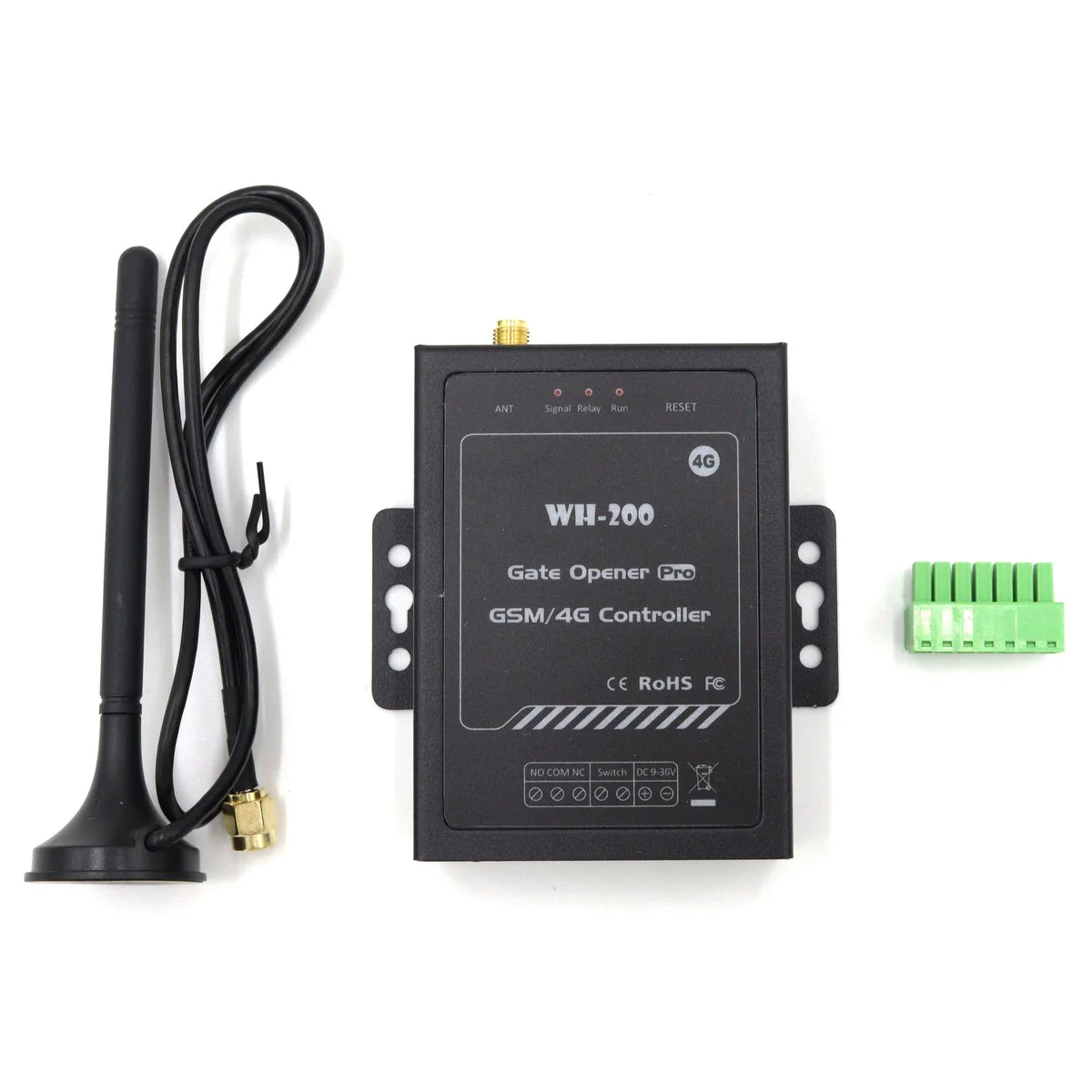

Includes:

• 1x Receiver
• 1x Antenna

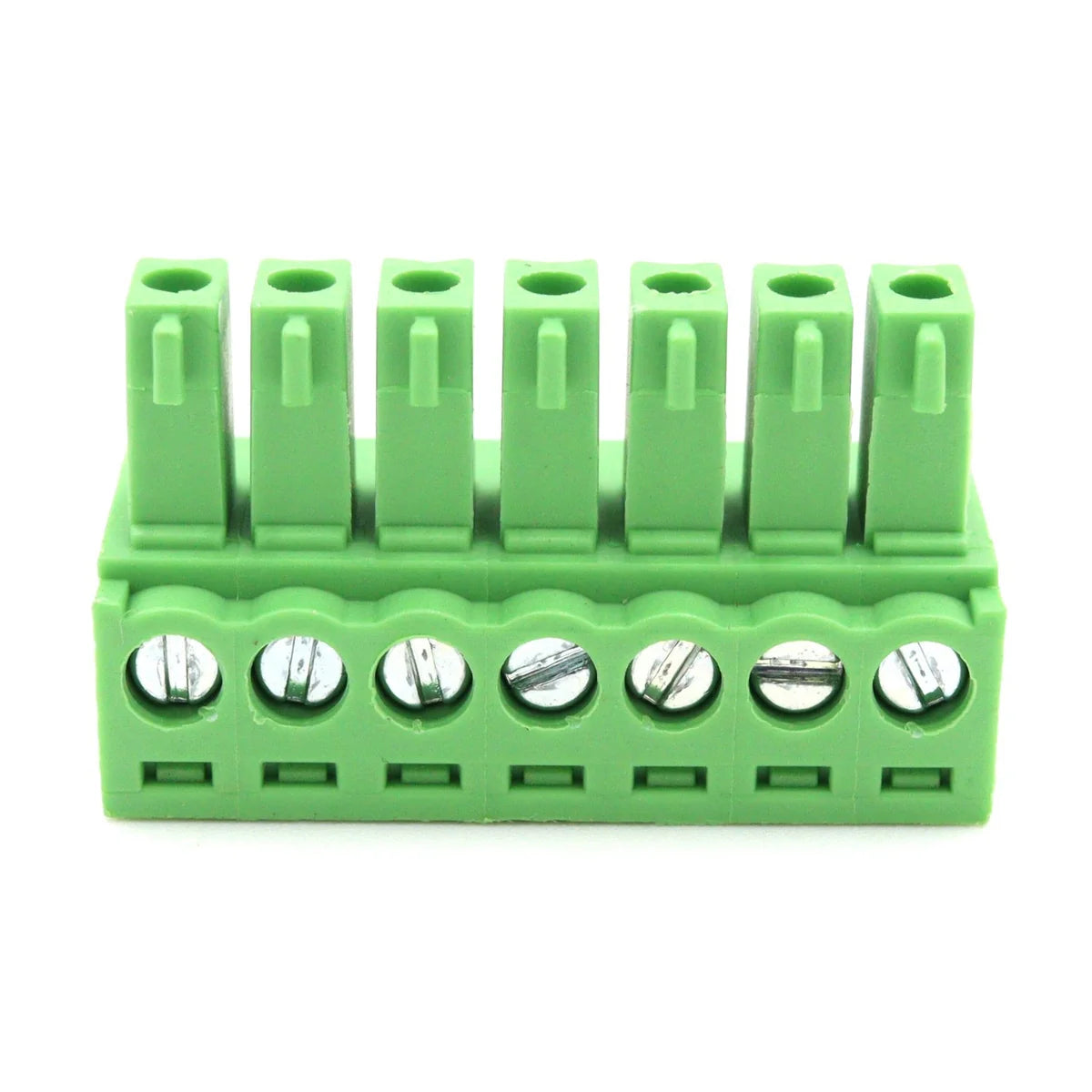

• 1x Terminal Block

Features:

• 4G Quad-band, can work in the worldwide 4G networks.
• Secure - Using caller ID for identification, unknown callers are ignored.

• Add or remove users by SMS Text command.

• Up to 200 (Optional 1200) authorized phone numbers can be configured.
• Time limitation for access, user can call in to control only during the pre-set time period.
• Automatically delete expired authorized phone numbers.
• Automatically report current status by SMS or call to the 1st number.
• The relay close or open time is programmable.
• Remember relay status when power failure.

• One output with relay for connecting the switch of the door or machines.
• One wired switch: we can control it under manual control mode.

• (gates, bollards, barriers, garage doors, shutters and access doors or machines).
